Industrial Normal Tracker Panel Price Home Lighting Energy off-Grid Solar PV System Factory

Industrial Normal Tracker Panel Price Home Lighting Energy off-Grid Solar PV System Factory

WORKING PRINCIPLE FOR BR SOLAR POWER SYSTEM: Solar System absorbs sun's energy to light up your home and power your home
Basic Info
Model NO. BR-SOLAR POWER SYSTEM
Output Voltage (V) AC 220V
Solar Panel (W) 450W-700W
Battery Type Lead-Acid/Opzv//Lithium
Mounting Type Ground Mounting, Roof Mounting, Carport Mounting
Work Time (H) 24 Hours
Optional Part Storage Battery
Technical Support Solar System Installation Video
Solar Panel Type Monocrystalline Silicon
Controller Type MPPT
Output Frequency 50/60Hz
Serve Life 25 Years
Safety Class Class a
Transport Package Standard Export Carton with Foam Inside
Trademark AS SOLAR
Origin Jiangsu, China(Mainland)
HS Code 8501610000
Production Capacity 50000 Set/Year
Product Description

WORKING PRINCIPLE FOR BR SOLAR POWER SYSTEM:

Solar System absorbs sun's energy to light up your home and power your home electrical appliances including charging mobiles.The components of the solar system includes solar panel, lighting bulbs, integration controlling box inside with charge controller, solar battery, and inverter. Some system can be with fan, TV set, laptop, air contioner, etc.Providing illumination powered from the sun energy, the solar panel in the system convert the sun's energy directly into eletricity.This electricity can be stored in the battery and used for lighting whenever required.Our solar System, compact, portable and easily mountable, is an economical solution to all your power problems and comes in an easy-to-install kit.
BR SOLAR-INSTRUCTION OF SOLAR ENERGY SYSTEM:

5KW off grid solar system is widely used in the following places:

(1) Mobile equipment such as motor homes and ships;

(2) Used for civilian and civilian life in remote areas without electricity, such as plateaus, islands, pastoral areas, border posts, etc., such as lighting, televisions, and tape recorders;

(3) Home rooftop grid-connected power generation system;

(4) Photovoltaic water pump to solve drinking and irrigation of deep water wells in areas without electricity;

(5) Transportation field. Such as beacon lights, signal lights, high-altitude obstacle lights, etc;(6) Communication and communication fields. Solar unattended microwave relay station, optical cable maintenance station, broadcasting and communication power supply system, rural carrier telephone photovoltaic system, small communication machine, soldier GPS power supply, etc.

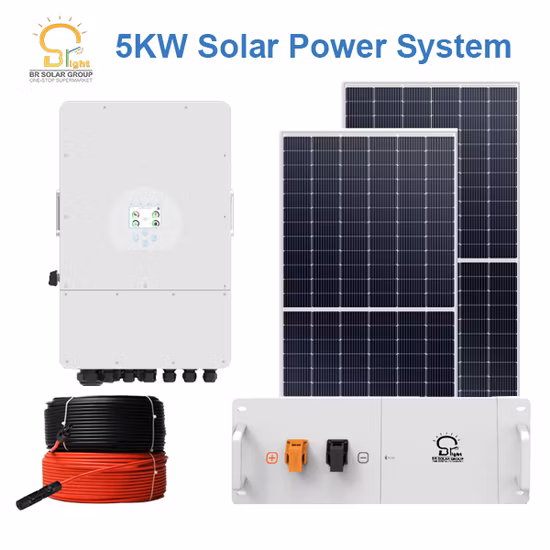

BR-CUSTOMIZED 5KW SOLAR SYSTEM: (more customized offer please kindly send us inquiry )
ItemPartSpecificationQuantityRemarks
1Solar panel
Mono Half Cell
BR-M550W

Class A+,21.6% Efficiency
4pcs
Class A+ Grade, 550W,TUV Certificate authorized by Germany

connection method:2strings x2 parallels
daily power generation:9.3KWH
25 Years Design Lifespan
2Y-TYPE MC4 CONNECTORBR 2-11pc4 inputs, 1 output
20 Years Design Lifespan
3Mounting Bracket Hot-dip Galvanized Rooftop Mounting Brackets1setRooftop Mouting Brackets Anti-Rust,Anti-Corrosion
,Anti-Salt Spray,
wind resistance≥160KW/H
35 Years Design Lifespan
4Power Frequency InverterBR Bright Series All in one Inverter
BR-48V/5kw
1set1,AC input: 220VAC.
2,Support grid/Diesel Input.
3,Pure sine wave, power frequency output.
4,AC output: 220VAC, 50/60HZ
(optional).
15 Years Design Lifespan
5Deep Cycle GEL Battery
2218 Times 30% Deep Cycling
Gelled Battery

BR-12V-200AH
4pcsEuropean Projects Standard 58KGS Design

4pcs in series
Total release power:6.7KWH
12 Years Design Lifespan
6MC4 Connector MC42pairs20 Years Design Lifespan
This length for free.
Longer length needs to be negotiated when order confirmed.
20 Years Design Lifespan

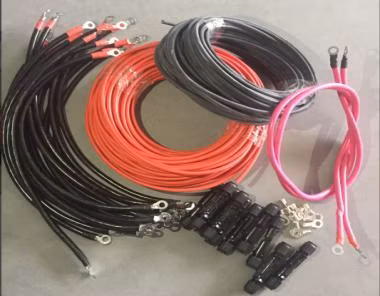

7PV cables (solar panel to PV combiner box)4mm260m
20 Years Design Lifespan
8BVR Cables(PV combiner box to Controller)6mm210m
9BVR Cables(Controller to Battery)
16mm22sets
10BVR Cables(Inverter to Battery)
25mm22sets
11Connecting Cables25mm24sets
12Breaker2P63A1pc
13Installation ToolsPV Installation Package1 PackageFREE GIFTS
14Extra Accessories
FREE CHANGING1 SETFREE GIFTS

BR-DIAGRAM OF SOLAR SYSTEM (More Diagram kindly send us inqury)

BR SOLAR--FACTORY DETAILS:

Industrial Normal Tracker Panel Price Home Lighting Energy off-Grid Solar PV System Factory


PROJECTS OF BR SOLAR POWER SYSTEMS:
We Choose A Quality Material, Quality Is Our Culture.So Our Solar Products Have Been Successfully Applied In More Than 128 Countries Including UN Projects and NGO Projects.

Industrial Normal Tracker Panel Price Home Lighting Energy off-Grid Solar PV System Factory

Industrial Normal Tracker Panel Price Home Lighting Energy off-Grid Solar PV System Factory


CERTIFICATES OF BR SOLAR:

Industrial Normal Tracker Panel Price Home Lighting Energy off-Grid Solar PV System Factory


WHY CHOOSE BR SOLAR---EXCLUSIVE ONE-STOP SERVICE

A. Fantastic services ---- Fast response, Professional design solutions, Careful guidance and Perfect after-sales support.B. Diverse ways of cooperation ---- OBM, OEM, ODM, etc.C. Fast delivery (Standardized Products: within 7 working days; Conventional Products: within 15 working days).D. Certificates ---- ISO 9001:2000, CE & EN, RoHS, IEC, IES, FCC, TUV, SONCAP, PVOC, SASO, CCPIT, CCC, AAA, etc.E. 14 Years Manufacturing & Exporting Experience, applied in more than 114 countries including UN & NGO & WB projects, We know the solar markets well for every Countries.F. We can make suitable designs to meet the local markets with 1-3 Solutions to choose.G. Quality Assure: 3T Method to Control The Quality.H. Installing Video and Site Guiding Installation Service is Available if you have Containers Order.

BR SOLAR--LOADING & PACKAGING & SHIPPING:

Industrial Normal Tracker Panel Price Home Lighting Energy off-Grid Solar PV System Factory


FAQ:
Can I have a sample order for solar products?
A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.What about the lead time?
A:Sample needs 5-7 days,.mass production,Depend on the quantityAre you a factory or a trading company?
A: We are the factory with high production capacity and product range of solar products in China.Welcome to visit us anytime.How do you ship the goods and how long does it take to arrive?
A: Sample shipped by DHL,UPS,FedEx ,TNT etc.It usually takes 7-10 days to arrive.Airline and seashipping also optional .What is your Warranty Policy?
A: We offer 3 to 5 years warranty for the entire system and replace with new ones for free in case ofquality problems. THANKS FOR YOUR TIME AND YOUR INQUIRY WITH BR SOLAR!!
